G105 Grader 105" (2.65m)
SharpGrade Grader Blade Series
Here at SharpGrade, we continually innovate and this is reflected in our products, having more “world first” features and options that increase accuracy and productivity, than any other brand you now have access to world class laser grader attachments for compact track loaders, skid steers and excavators.

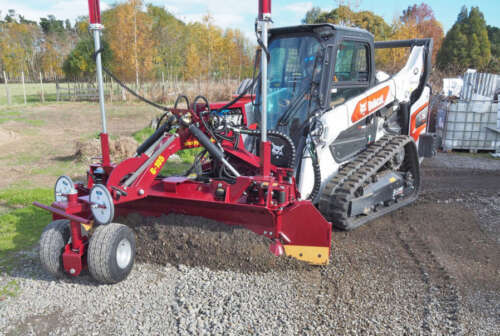

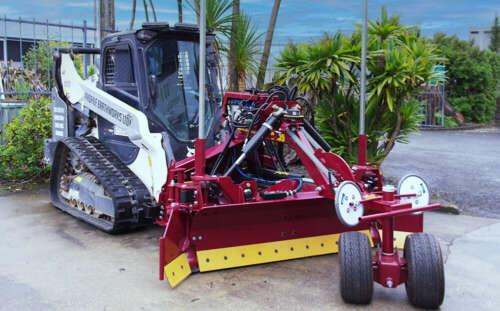

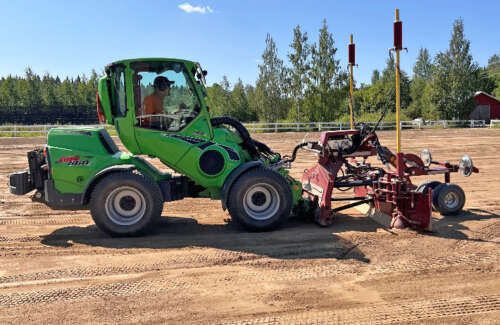

The G105 (2.65m) is part of the world's first reversible skid steer grader blade range with front and rear blades and hydraulic side wings, suited to 65 - 75 HP skid loaders.

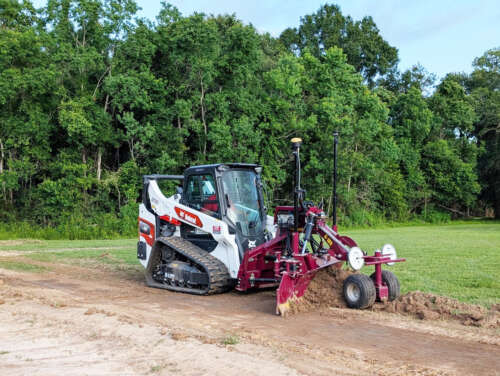

Cut, carry or windrow material forwards or backwards, with twin blades and hydraulic side wings that swivel forward or backwards. These heavy duty wings are designed to cut and trim. Rounded front corners allow the operator to grade up to a curb without damage or spillage, and the unique patented QuadRod 3 linkage design and large parabolic mirrors allow unobstructed view of the blades and wings for efficient precision grading.
Product Details
Transform your skid steer loader into a precision grader blade
Get the performance of a larger grading machine right from the seat of your skid steer loader and take advantage of your loader's inherent maneuverability to level ground with unparalleled ease and efficiency: forwards and backwards!
The G105 Skid Steer Grade Blade comes with patented sealed, shielded and lifetime lubricated QuadRod linkages, adjustable hitch plate, underslung walking beam and retracting front chassis. The SharpGrade G105 is built for hard work. Suited to medium frame machines in the 65 - 75 HP bracket, ideal for large flat work, road grading, curb & sidewalk prep, subdivisions, and arenas.
- Sealed, shielded and lifetime lubricated bearings throughout: Never requires greasing
- Patented QuadRod 3 linkage: keeps blade parallel throughout movement to maintain equal height between front & rear blade
- No centre pivot; 3 times faster to grade than conventional designs, no duck walking
- Adjustable Hitch plate: sets chassis level on lower stops for precision grading
- Underslung walking beam: reduces wheel scuff in turns
- Outboard mounted cylinders reduce cross coupling to a minimum
- Robust, narrow boxed chassis for unsurpassed visibility
- Angle cylinders are mounted above the material, for longevity
Benefits:
Accurate grading made easy
The SharpGrade Skid Steer Grader Blade enables you to accurately level to within less than 1/8" (3mm). Using a SharpGrade Grader Blade is up to ten times faster than levelling using a skid steer with standard bucket attachment.

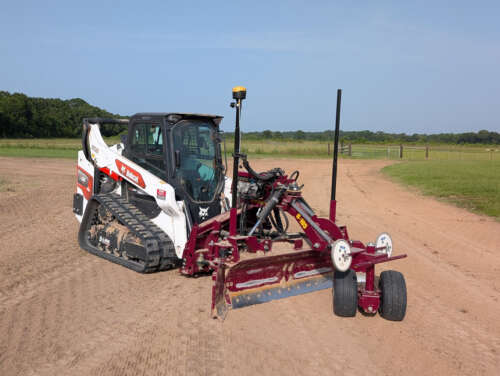

The optional QuadGrade 2D Laser Control system integrates with any 3D machine control system, allowing you to easily grade complex contours with several gradients, diverging offset crown and different cambers directly from the control of the SharpGrade.
Fast results
Designed specifically to work on skid steer loaders, the SharpGrade Grader Blade is the first in the world to work in forward and reverse, for optimal efficiency. Twin pivoting blades give the ability to cut, carry, trim, spread and finish in one pass, in either direction, for speed and control.
Robust, reversible hydraulic side wings give you the ability to carry material forwards or backwards when you need it.
A curved moldboard ensures wet material can be easily rolled. Operated from your machine's hydraulic system, in-cab adjustments are a breeze and leveling is up to ten times faster than leveling using a skid steer and standard bucket attachment.
Plug and play attachment
The SharpGrade Skid Steer Grader Blade is quick and easy to attach to your machine. No tools required, simply clip the unit into place and attach the hoses and the optional QuadGrade 2D system comes pre-tuned, ready to start work.
Maintenance free performance
Designed and built with longevity in mind, the SharpGrade Skid Steer Grader Blade features induction hardened pins, self-lubricated bushes and dirt seals in all moving joints, so it won’t let you down when time equals money. The patented, sealed QuadRod system keeps the blade rigid and accurate at all times, with low maintenance. High performance, proportional hydraulic valve, configurable to open & closed center, with built in relief protects the system from overload. Valves feature manual override capability to allow easy diagnosis if there is ever a problem.
Standard Features:
- Greased for life, low maintenance design. Induction hardened pins, permanently sealed, self-lubricated HardiLube bushes and dirt seals in all moving joints provide a long low maintenance life.
- Unique QuadRod Linkage. The Patented QuadRod 3 system gives unparalleled rigidity, rated to 120 HP machines. Utilizing 3 x Heavy Duty link arms, the outboard cylinders are directly connected to the outer edges of the blade, achieving the ultimate in accuracy. All joints are lifetime sealed, lubricated and maintenance free, with no greasing required.
- Adjustable hitch plate: Sets SharpGrade perfectly level with boom fully down, to provide the ultimate in rigidity. This reduces track and tire wear and boom and linkage wear, as the SharpGrade is pushing on the front of the machine, instead of transferring the load to the rear of the machine through the linkages. This is especially important with vertical lift machines. Adjustable hitch plate keeps chassis perpendicular with the ground, so side wings stay flat throughout their travel. Rear viewing ports allow operator to see the rear blade.
- Twin large parabolic mirrors: See the front blade and both front wing tips for confident grading in confined areas, along walls, curbs or foundations.
- Twin blades: Front blade is fixed and reversible. Rear blade is pivoting and reversible. Pivoting blade reduces packing between the blades.
- Underslung Walking Beam: Patented underslung walking beam reduces wheel scuff when turning.
- Tires: Twin 18"x 7" (468mm x 180mm) with labyrinth seals on wheel bearings keeping grit out.
SharpGrade G105 Grader 105" (2.67m) |
|
QuadGrade 2D Laser Control Package | Optional |
3D GPS or TPS Machine Control | Optional |
Blade Width Articulated & wings closed Blade Width With Side Wings open | 62" (1.58m) 105" (2.67m) |
Blade Angle Blade Tilt | +/- 30 degrees +/- 10 degrees |
Side Wing Angle | 120 degrees total |
Machine Weight | 2,270lb (1,032kg) |
Horsepower Range Maximum Hydraulic Pressure Min / Max Flow Rate | 65-75 HP 3,625psi (250 bar) 12-40GPM (48-160L/min) |

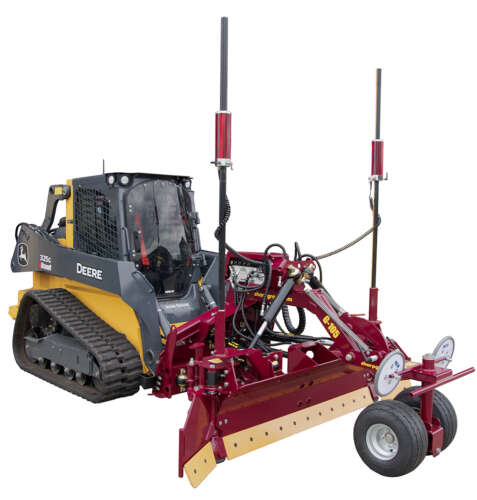

- QuadGrade 2D machine control system: with adjustable grade height receivers: Electronically adjust the grade height 1/25" (1mm) at a time without leaving your seat. Increased receiver range means you stay on grade longer. It is highly accurate and easy to use, the blade can be manually operated by the 4 in 1 control at any time, with or without the laser control connected. Compatible with all large frame skid steers.
- Removable laser poles: quickly change from long to short poles for indoor work or working in height restricted areas. No tools required.
- Direct Connect: Connect the SharpGrade Grader Blade to the base machine via the 14 pin plug on the boom, the operator can directly control the SharpGrade from the extra buttons on the handles. We have Direct Connect kits available for most brands, including ASV, Bobcat, Case, Cat, Deere, Kubota, Takeuchi & Wacker Neuson.
- Aligned QuadGrade Sonic system: Patented Aligned Sonic maintains cross fall when the blade is articulated. Reads a string line, curb lip, or grade match to a smooth surface for grades not possible to achieve with a laser. Plugs directly in and reads off the control panel. Height and slope adjustable from cab.

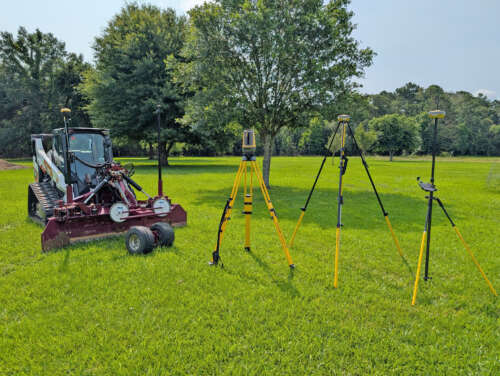

- Other Machine Control Systems: Compatible with all 3D machine control systems.
Our SharpGrade Skid Steer Grader Blade attachments can be supplied in one to two weeks of order, if in stock.
Delivery will incur a freight fee if delivered out of town by truck or courier.
Spare components not sold with the attachment or out of warranty will incur a freight fee.
Warranty Inclusions:
SharpGrade Inc. (“SharpGrade”) warrants all structural products to be free from defects in material and workmanship for 12 months from date of purchase.
SharpGrade warrants all QuadRod linkages for a period of 2 years from date of purchase.
If a product manufactured by SharpGrade is proven to be defective in material and/or workmanship, any product repaired or replaced under the terms of this warranty policy shall retain the warranty period pertaining to the product’s original date of issue.
Warranty Exclusions:
This policy does not cover:
- Carrier machine, or any parts, hitches, connections, hydraulic components, tracks, electrics, electronics associated with the carrier machine.
- Accessories that are warranted directly to the Customer by third-party manufacturers.
- Product failure as a result of incorrect installation, negligence, or misuse.
- Costs associated with the removal or reinstallation of the product or machine downtime.
- Freight costs for supply of replacement parts.
- Personal injury or property damage caused by product failure, persons, place, or machine.
- General product wear and tear on ground engaging parts, tires, pins, bushings, or hitch connections.
